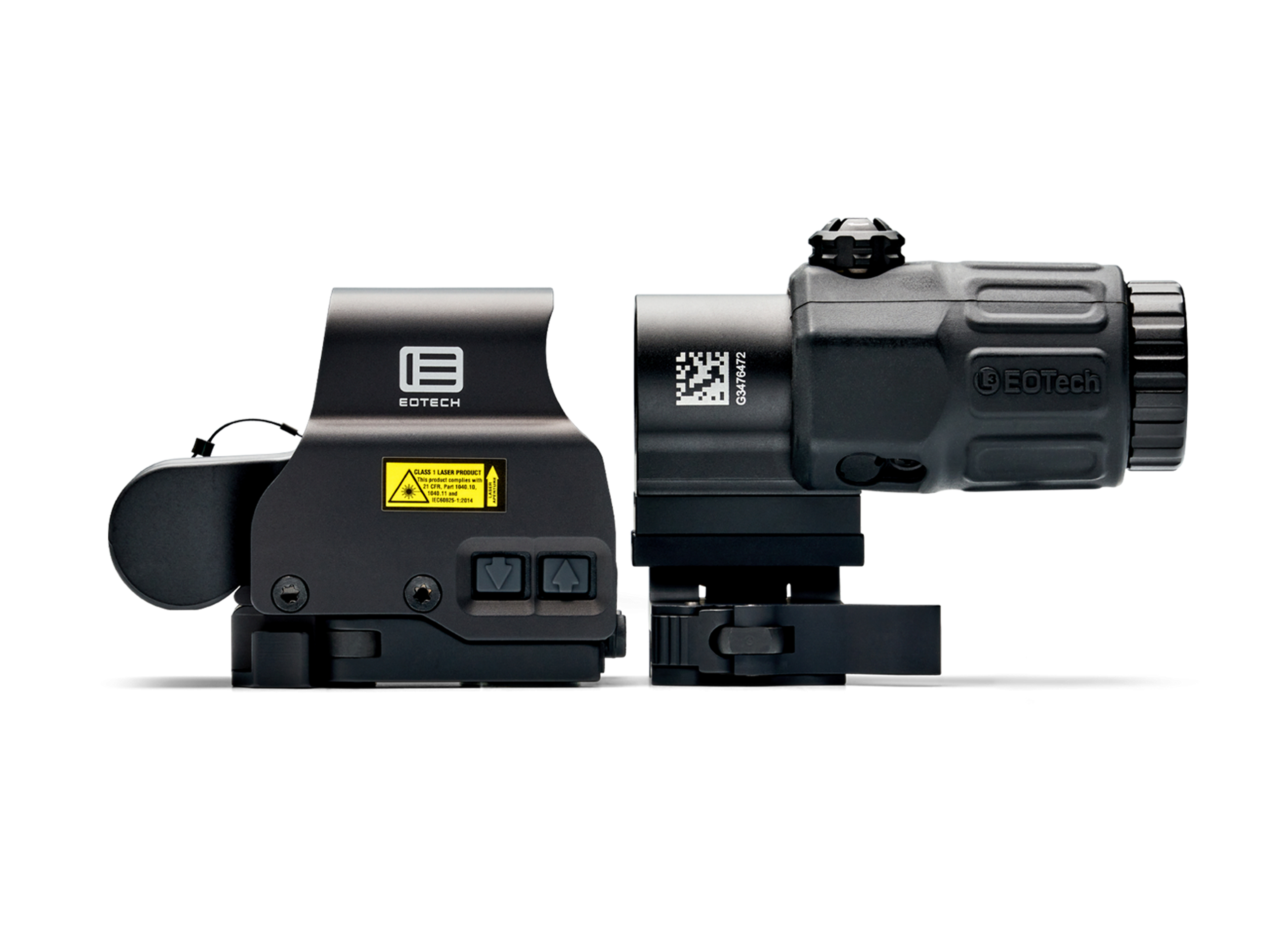

Regardless of the scenario, the Holographic Hybrid Sight II (HHS II), featuring an EXPS2-2 with a G33.STS magnifier, provides an amazing advantage when transitioning from close-quarters to long-range shooting. Instant transition is achieved through a quick Switch-To-Side (STS) mount that offers a simple, quick disengagement of the magnifier.
EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.
EOTECH Two Dot Reticle
Our two-dot reticle pattern can be easily distinguished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For ordering this reticle, the model codes will end in -2.
In the Box
- HHS™ II (EXPS2-2 & G33.STS)
- Quick-Start Guide
- Warranty & Registration Card
- CR123 Battery
Features & Specifications (Non-Night Vision Compatible)
- L X W X H: 8.2" x 2.3" x 3.3" (208.3 x 58.4 x 83.8 mm)
- Weight: 22.4oz (635g)
- Water Resistant: 10ft. (3 m) depth
- Mount: 1" Weaver or MIL-STD-1913 rail
- Windage & Elevation Adjustment: 0.5 MOA per click
- Brightness: 20 daylight settings
- Power Source: 1 x CR123 battery
- Battery Life: 1,000 continuous hours at nominal setting 12 at room temperature
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Fixed Magnification: 3X
- Eye Relief: 2.2" (55.9 mm)
- Field-of-View w/ Magnifier: 7.3°
- Exit Pupil: 7.6 mm
- Sealing: Fog resistant internal optics
- Country of Origin
- HWS: Made in USA
- G33: Assembled in USA
