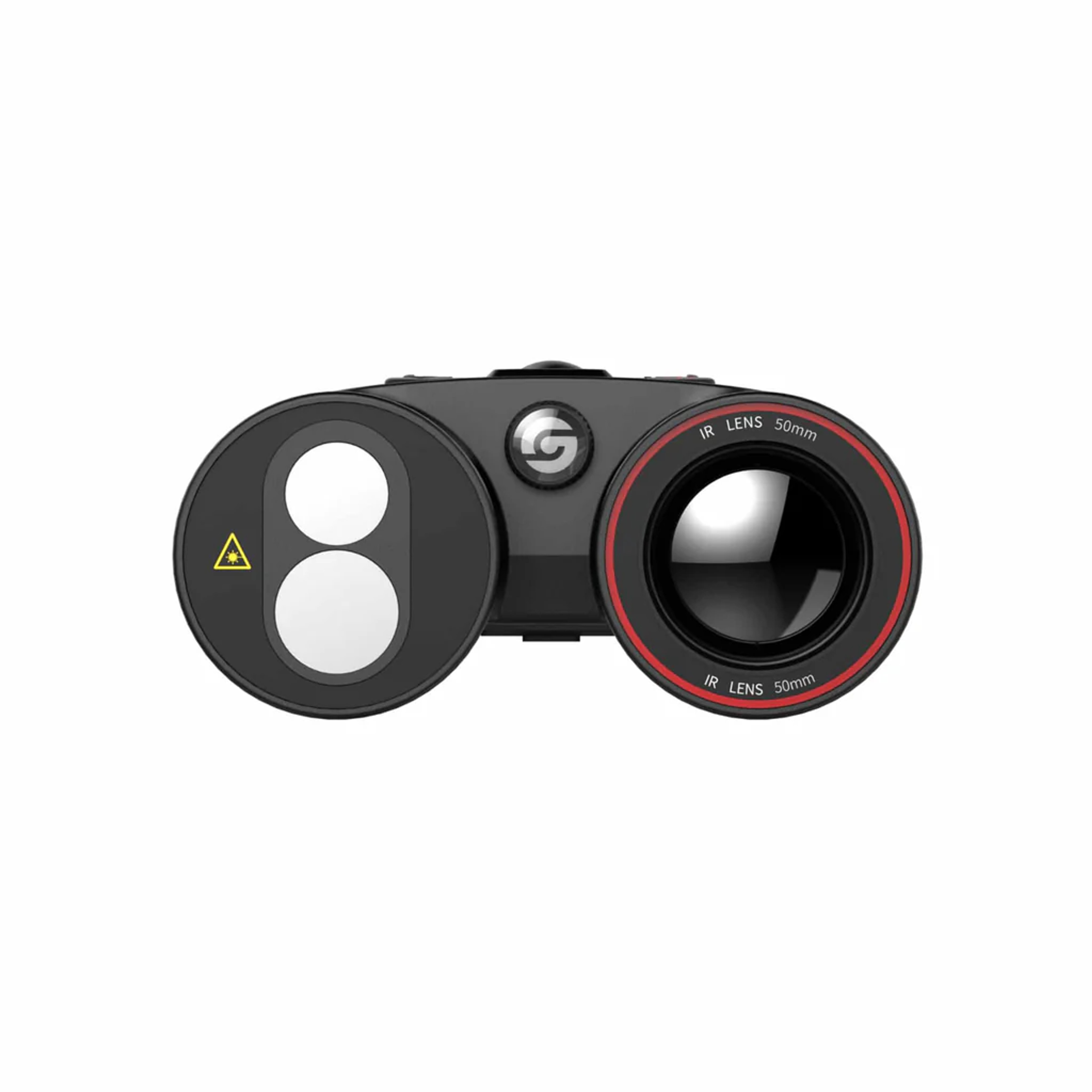

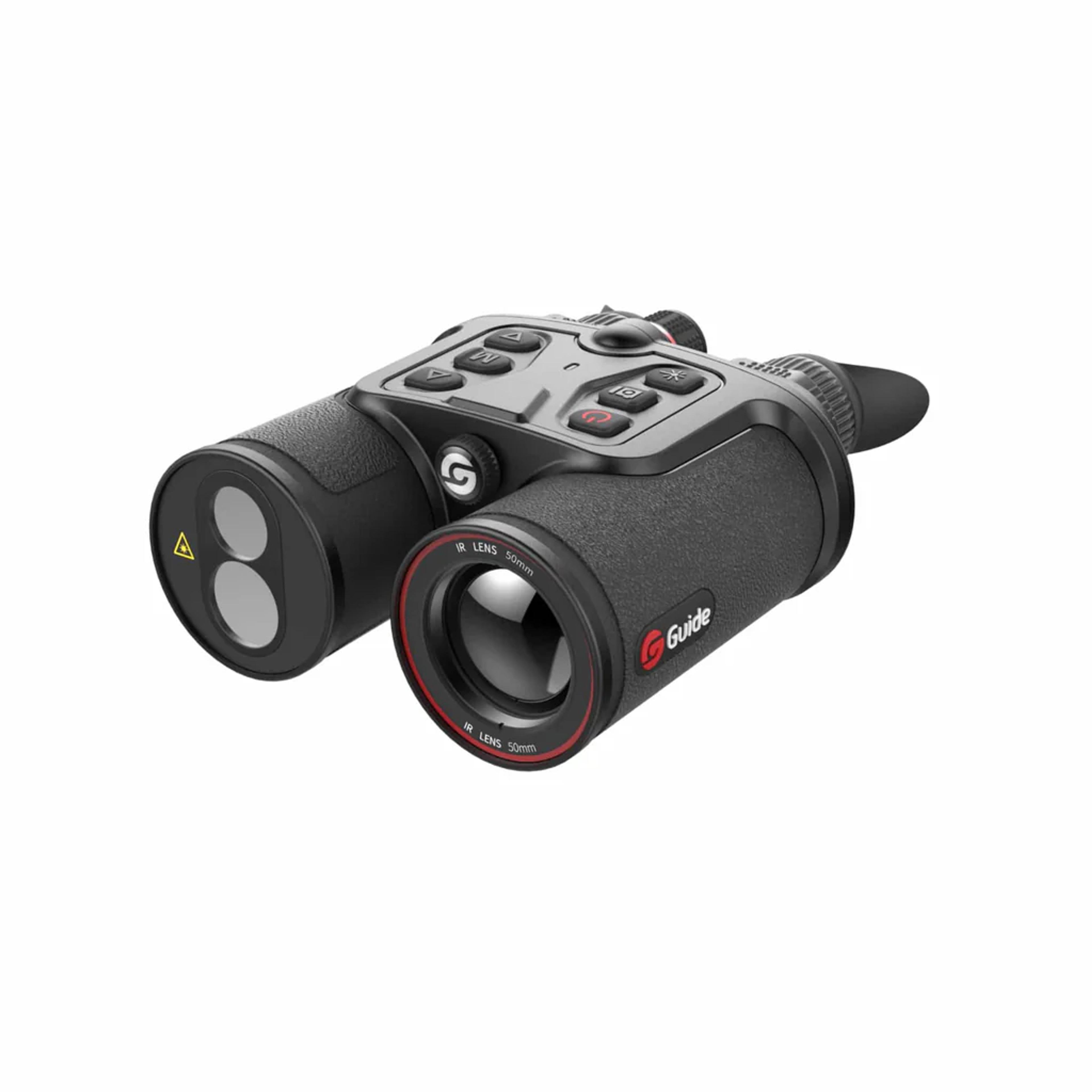

The Guide TN Normae Series has a classic binocular design, greatly reducing fatigue during long hours of surveillance. The Guide TN450 thermal imaging night vision binocular comprises of a high-sensitivity VOx uncooled IR detector, ensuring high quality imagery and an immersive experience with full color OLED 1024×768 high-definition display. A variety of functions to meet all your needs, including taking photos, videos, WIFI, laser ranging, GPS, compass, and more.
Features
- 400×300IR resolution
- 1400 m human detection range
- 50mm/F1.2Focal Length
- ≤50mKNETD
- 3.2X~12.8XMagnification
Tactical design, Comfortable observation

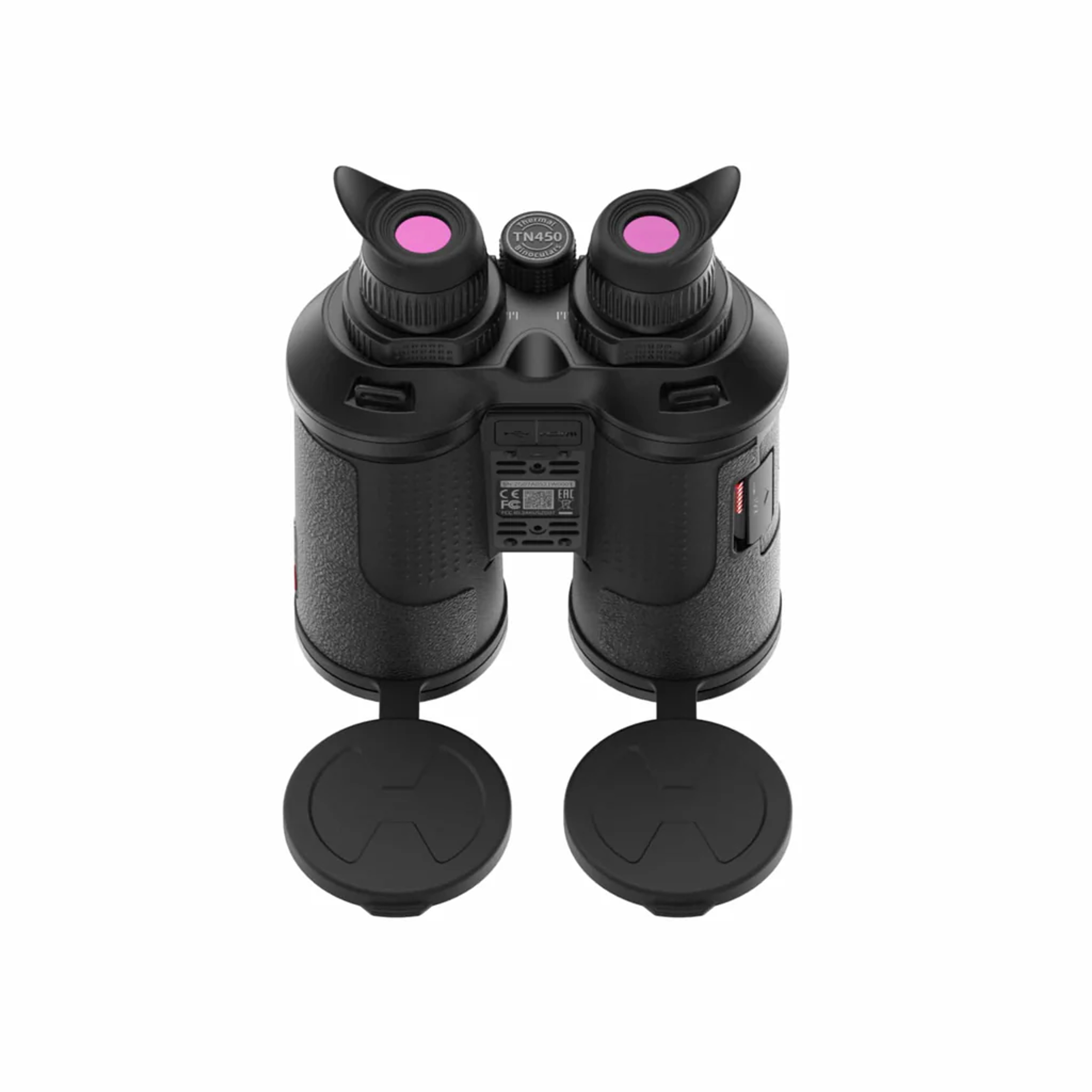

Classic binocular design, greatly reducing the fatigue feeling during long surveillance hours. Adjustable interpupillary distance between 60mm~70mm, Catering to different users. Tactical design with raised buttons can be quickly identified by touch even in total darkness.
Fast Detection，An All new experience
In absolute darkness, the laser ranging ensures accuracy when it comes to location and distance information.
High Quality Imagery, Day Or Night
The TN450 has up to 640 × 480 VOx uncooled IR resolution and a 50Hz image frame rate, ensuring ease when capturing a moving target smoothly.
Full-Color OLED Display
1024 x 768 Full-color OLED, High contrast, enhanced image quality, improved viewing comfort.
Well-Designed PIP mode, Highlighting the Target
The PIP mode identifies the location of the target instantly even in the outdoors.
Smooth Zoom For Flexible Searching
By using the long press the up/down button, users can easily zoom in and zoom out on targets. Making the search effortless and allowing the user to pinpoint the target quickly.
Multiple Color Palettes to Highlight the Target
• Six color palettes: white hot, black hot, red hot, green hot, iron red, blue heat.
• Supports a one-button switch to identify the location of the target instantly, helping to capture the target in any weather conditions. rvations.
Multiple scene modes,Highlight Target Clearly
“Enhance/Highlight/Natural” can easily be switched by the touch of a button. The image can be adaptively adjusted in different environments. The “Enhance/Highlight” can effectively reduce image impurities to highlight the target.
Photo and Video Recording
The TN450 supports photos and videos, recording wonderfull moments at any time. Remote-control is live image and video transmission via WIFI connection, can share to your social media by APP.
IP66, 1-meter Drop test
The IP66 waterproof-rated certification protects the TN450 from heavy-rainfall, dust, and impact. Working temperature is -30°C~50°C ,suitable for different weather conditions. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed.
Specifications
- Infrared detector
- Detector resolution and pitch: 400 × 300, 17 μm
- Spectral range: 8～14μm
- NETD: ≤30mk @ F1 25℃
- Lens
- Focal length: 50 mm; F1.2
- Focusing mode: Manual focusing
- Field angle: 7.78° × 5.84°
- Frame Rate
- Output frame frequency: 50Hz
- Zoom
- Optical zoom: 3.2x
- Digital zoom: 1 – 4x
- Visual effect: It's like viewing at a 22’‘ screen at a 1 meter
- Display
- Display type: 0.39" OLED × 2
- Resolution: 1024 × 768
- Eyepiece: Monocular, exit pupil distance≥10 mm, diopter adjustment: -4 to＋2
- Eyepiece zoom: 13.8x
- Video output: Digital Video
- Button
- Button Function: Power / Up / Menu / Down / Photo / Video / Ranging
- System
- Time setting: Available
- Watermark settings: Closed, setting of date or date and location
- PIP: Upper left, Upper middle, Upper right, Closed
- Restore to default: Available
- Start up: 2s
- Memory capacity: 16GB
- Environmental
- Operating temperature range: -30 ℃ to 50 ℃
- Storage temperature range: -40 ℃ to 60 ℃
- Humidity: 10 % to 95 % non-condensing
- Shock: 30 G at 1 ms half sine pulse (as per IEC60068-2-27)
- Vibration: 10 Hz - 150 Hz - 10 Hz 0.15 mm (as per IEC60068-2-6)
- Drop: 1 m
- Encapsulation: IP66
- Certification: IP66, FCC, CE, Rohs, EAC, un38.3
- Physical
- Weight: ≤880 g
- Size (L × W × H): 162 × 146 × 70 mm
- Standard: Power adapter (in compliance with FCC, CE, EAC, and ROHS), Type C cable, Micro HDMI cable, lens cap, shoulder strap, 2 detachable eye masks, carry bag, 2 replaceable 18650 batteries (UN38.3), quick start guide
- Optional: Bluetooth remote control
