The Guide TU650M 3.0 gives Aussie hunters the power to see everything, anytime. Its multi-spectral system fuses true optical day vision with advanced thermal imaging, so whether you’re glassing a distant paddock at noon or stalking pigs in the dark, your view stays crystal clear. No torch, no guesswork, no missed chances — just pure, round-the-clock confidence and precision.
Features
- Dual Sights: Integrated thermal and night vision for all-day, all-weather targeting.
- Ultra-Clear Sensitivity: 640x512px & 12μm detector + 18mK NETD with Hyper-light enhancement algorithm for exceptional infrared imaging.
- Comfortable Viewing: QHD 2560×2560 AMOLED display for clear, smooth visuals.
- Shutterless Design: Innovative 3.0 shutterless design ensures smooth, uninterrupted visuals.

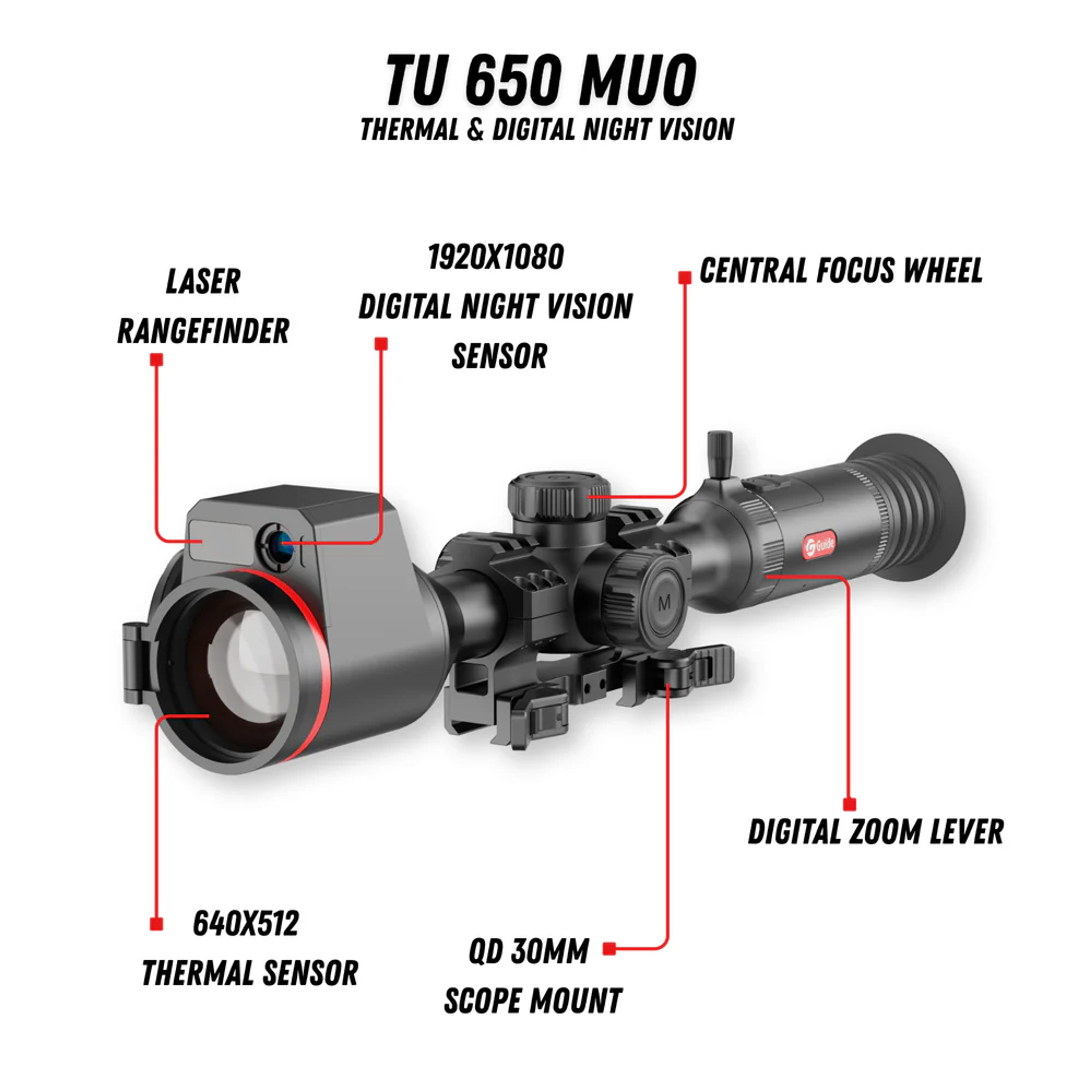

- Seamless Control: Centrally positioned focus wheel & zoom lever, ergonomically designed for effortless operation.
- Laser Range: Pinpoint target locations with accuracy, up to 1500m.
- Rugged Design: IP68-rated, shock resistance up to 6000J.
Thermal & Optical All-Day. All-Weather
The TU MUO 3.0 Series integrates thermal imaging and visible light with day, night and low-light modes. It’s the ideal device for both day and nighttime hunting — whether in the woods, bushes, rain, or snow.
Hyper-Light Algorithm Ultra-Premium Visuals
Powered by next-gen sensors and the Hyper-light algorithm, the product boosts image quality on multiple levels through improved clarity, reduced noise, optimized contrast, and enhanced resolution of fine details.
QHD AMOLED Display Comfortable Viewing
Equipped with a 1.03-inch AMOLED display of 2560×2560 resolution, the TU MUO 3.0 Series features 60mm eye relief and AI-enhanced imaging, ensuring crisp visuals while reducing eye strain for long-lasting comfort.
Dual Battery Design Worry-Free Power
2 built-in batteries and an external battery system offer strong power backup for extended hunting sessions of up to 14 hours. Moreover, the replaceable standard 18650 batteries support hot swapping, enabling virtually unlimited runtime.
Smart Recording Best Moments Captured
The recoil-activated recording function automatically captures a 15-second video and 5 photos of each shot, and provides instant video playback. The ultra-large 256GB storage ensures every breathtaking shot is saved.
Specifications
- Sensor
- Type: Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS
- Resolution: Thermal: 640×512@12μm (NETD 18mK); Digital: 1920×1080@2.9μm
- Frame rate: 50 Hz
- Lens
- Objective lens: Thermal: 50mm, F1.0; Digital: 35mm, F4.0
- Field of view: Thermal: 8.8°×7.0°; Digital: 6.4°×5.1°
- FOV m@100m: Thermal: 15×12; Digital: 11×9
- Magnification: Thermal: 3.7x~29.6x; Digital: 3.7x~29.6x
- Detection range: Thermal: 2600m/2800yd; Digital: 500m/550yd
- Focus: Manual
- Display
- Display type: 1.03'' AMOLED 2560×2560
- Color palettes: IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible: Day, Night, Low-light
- Eyepiece: Eye relief: 60mm; Diopter -5 to +5; Zoom: 7.8x
- Hardware
- Laser rangefinder: 1500m/1630yd
- WIFI: 2.4G, 5G
- Interface: USB-C (Charge/USB2.0)
- Tube diameter: Standard 30 mm
- Others: Microphone, Bluetooth
- System
- Recording function: Photo/Video (Audio recording included)
- Memory capacity: 256GB
- Power
- Battery type: 18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External)
- Operating time: 14 hours
- Environmental
- Operating temp.: -20°C to 50°C / -4°F to +122°F
- Shock: 6000J/1200G
- Encapsulation: IP68
- Physical
- Weight (g/oz): 1013/35.73
- Size (mm/in): 457×90×84/17.99×3.54×3.30
- Standard: Device, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag, IR Illuminator, IR Illuminator Bracket, 18650 Battery ×2, Battery Charger, 5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
- Optional: Bluetooth Remote Control, 18650 Battery
