The Advanced Target Pointer Illuminator Aiming Laser (ATPIAL) is a rugged, combat-proven and easy-to-use aiming system. Featuring integrated infrared and visible aim lasers as well as an infrared illuminator, the ATPIAL stands battle-tested for nighttime direct-fire aiming and illumination.
The ATPIAL-C includes a commercial class laser created to support tactical training requirements for law enforcement and military organizations. Other ATPIAL models are restricted for use by law enforcement and military organizations. Contact EOTECH at 888-368-4656 or Contact Us for more information.
Export is strictly prohibited without a valid export license issued by the U.S. Department of State, Office of Defense Trade Controls, prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.
L3 Technologies reserves the right to change the product specifications at any time without notice.
PROP 65 WARNING: This product can expose you to chemicals including (Epichlorohydrin, Phenyl, Hydrazine or Cumene) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
| Product Details |
|
| L x W x H |
4.6” x 2” x 1.6” (117mm x 71mm x 41 mm) |
| Weight |
7.5 oz (with batteries) |
| Battery Power |
One CR123 battery |
| Visible Aim Laser (ATPIAL) |
Output: 4.0 mW (Class IIIa)
Beam Divergence: 0.5 mrad
Wavelength: 605-665 nm
Range: > 25 m
|
| IR Aim Laser (ATPIAL) |
- Output Power Low: 0.6 mW (Class I)
- Output Power High: 25 mW (Class IIIb)
- Beam Divergence: 0.5 mrad
- Wavelength: 820-850 nm
- Range: > 600 m (Low), 2000 m (High)
|
|
IR Illuminator (ATPIAL)
|
- Output Power Low: 3.5 mW (Class IIIa)
- Output Power High: 30 mW (Class IIIb)
- Beam Divergence: 1-105 mrad (minimum)
- Wavelength: 820-850 nm
- Range: > 2,000 m
|
| Danger |
Laser Radiation Avoid direct eye exposure to beam |
| IR Laser Power |
50 mW Wavelength: 830 nm Class IIIb |
| VIS Laser |
Power: < 5 mW Wavelength: 650 nm Class IIIa |

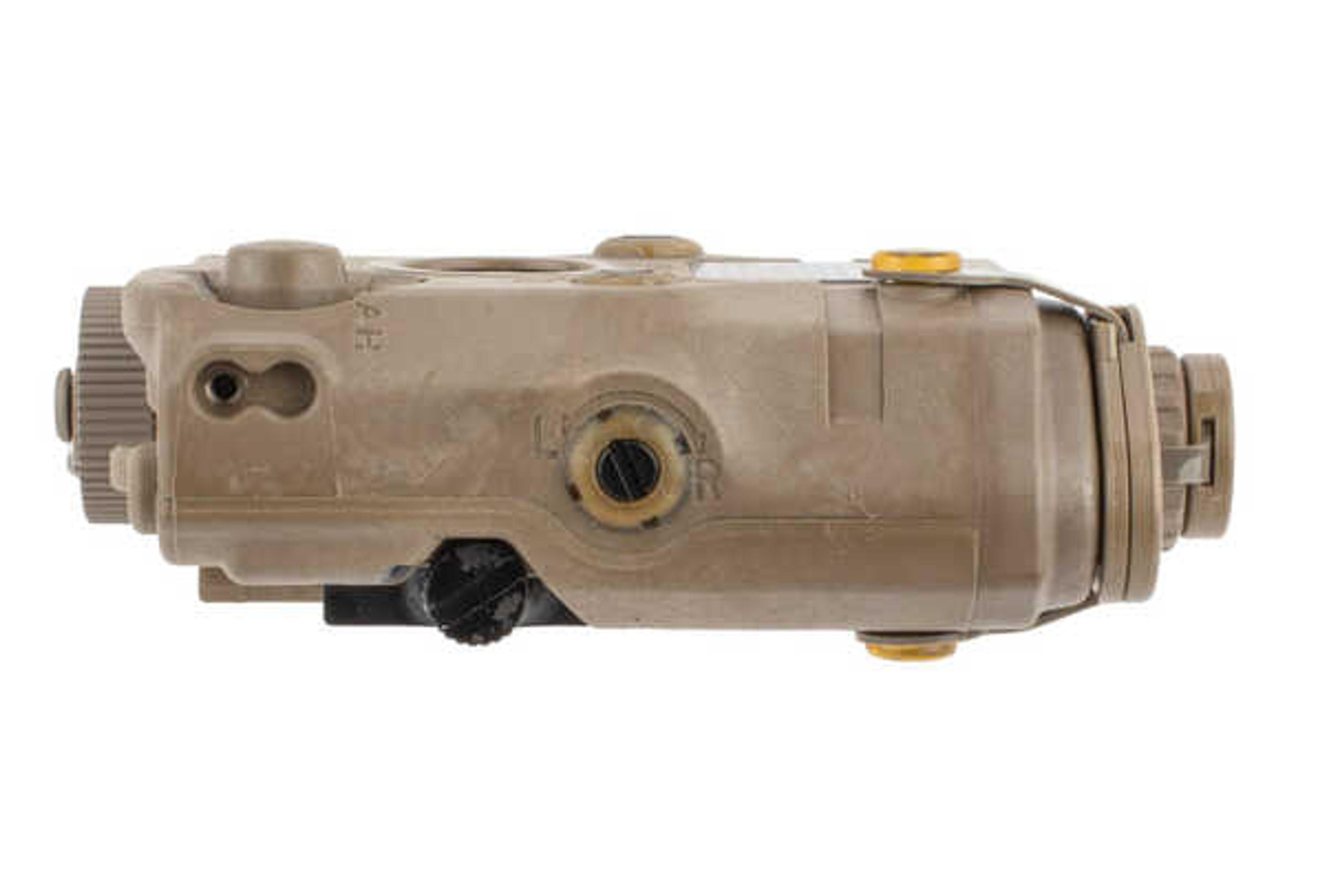

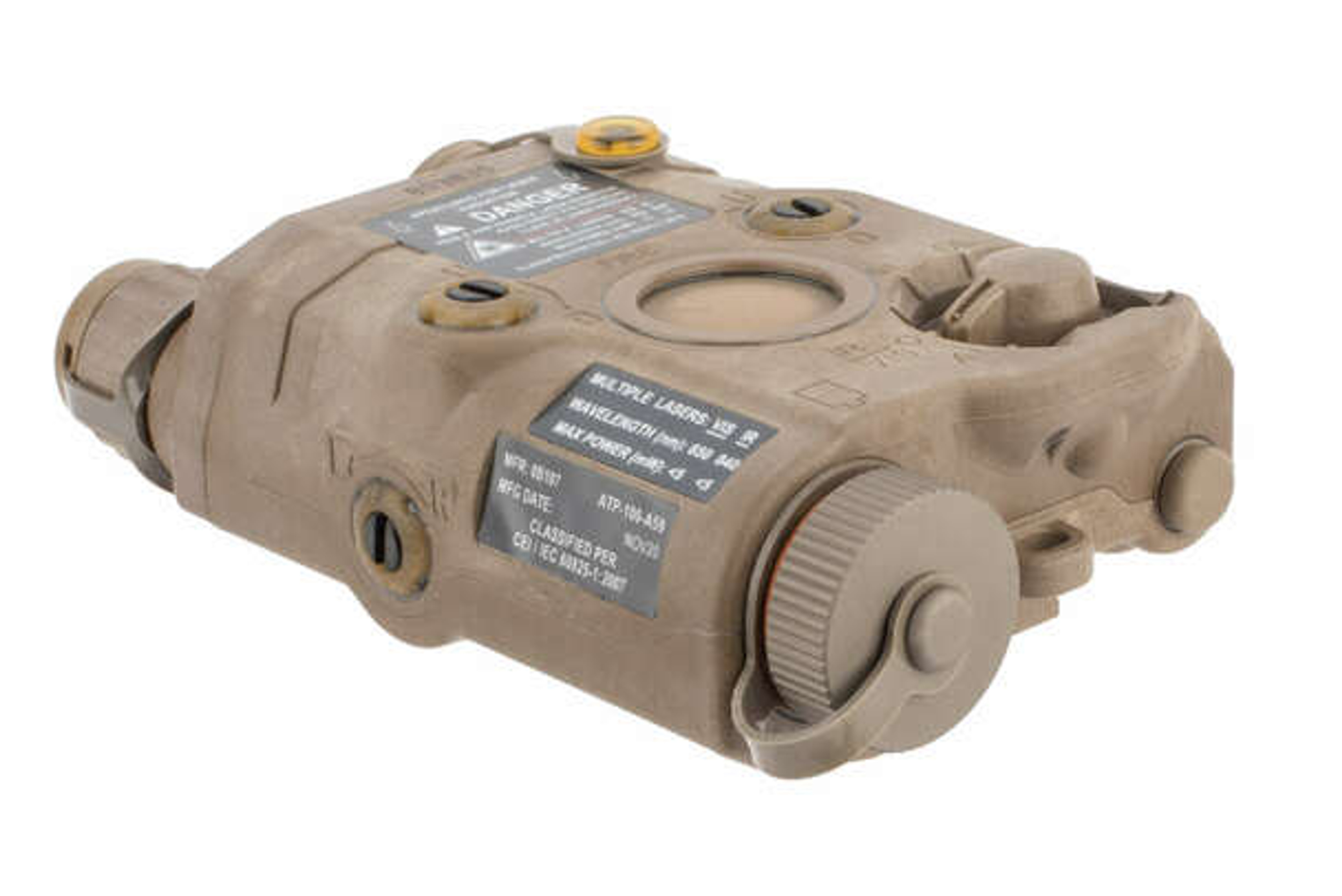

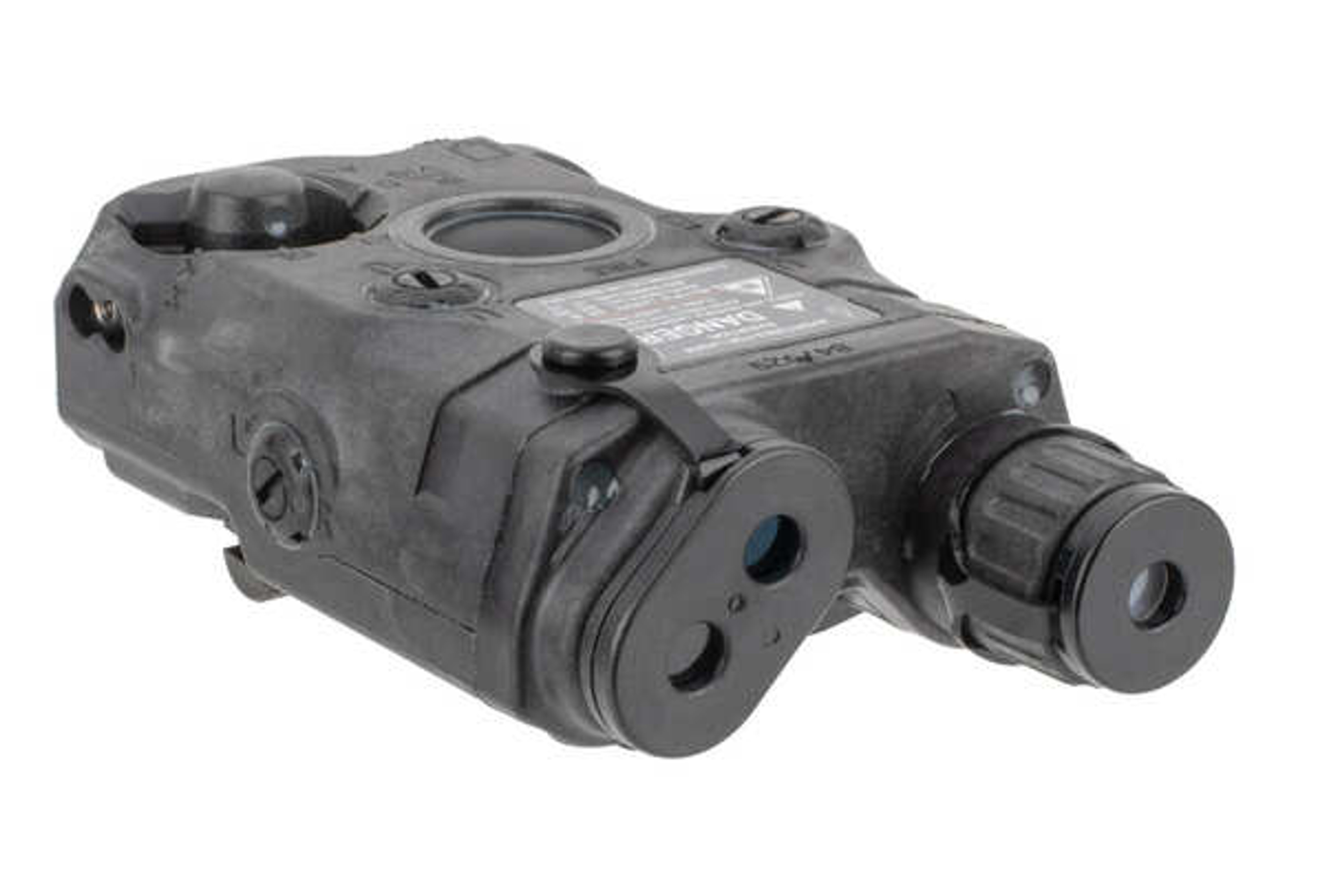

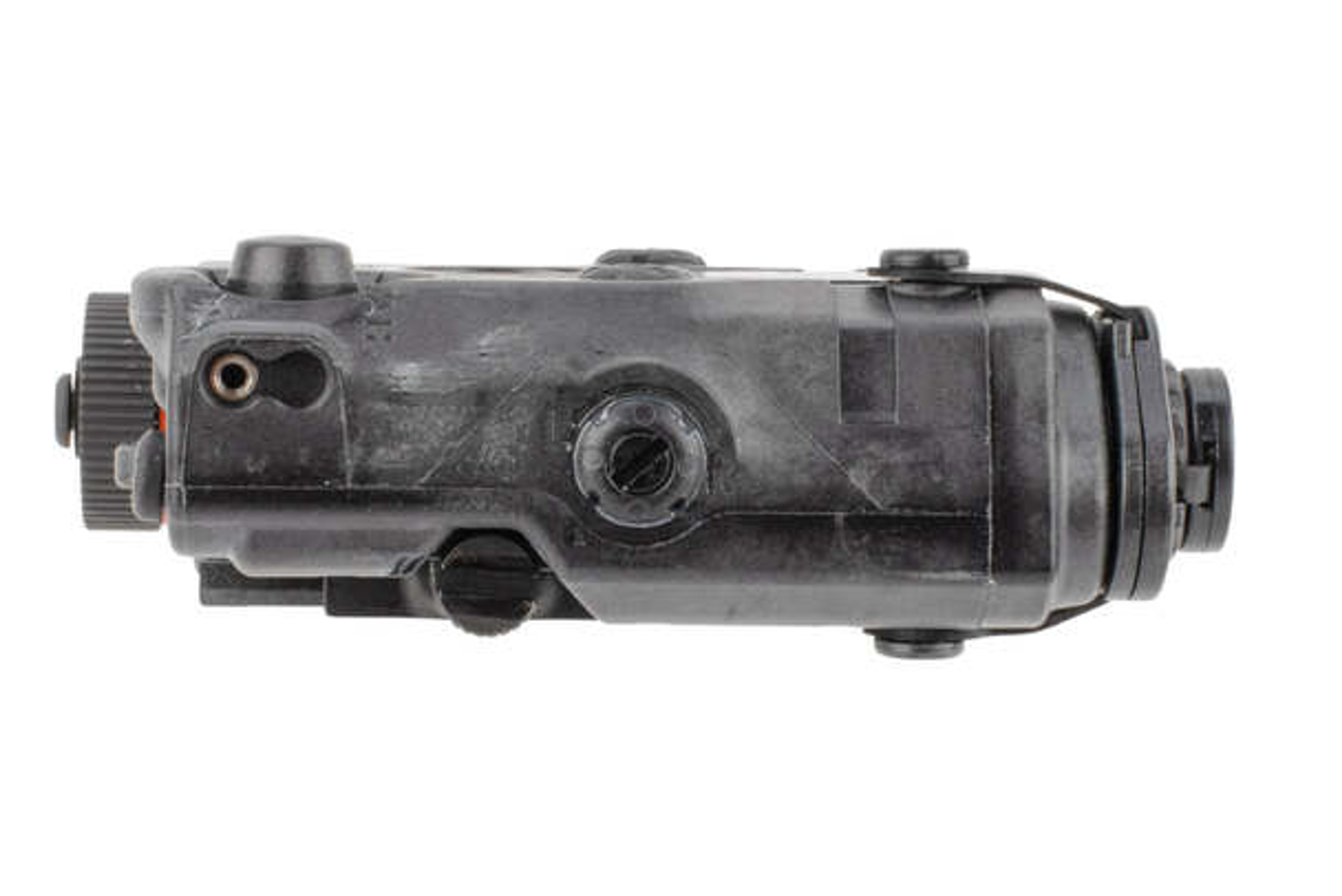

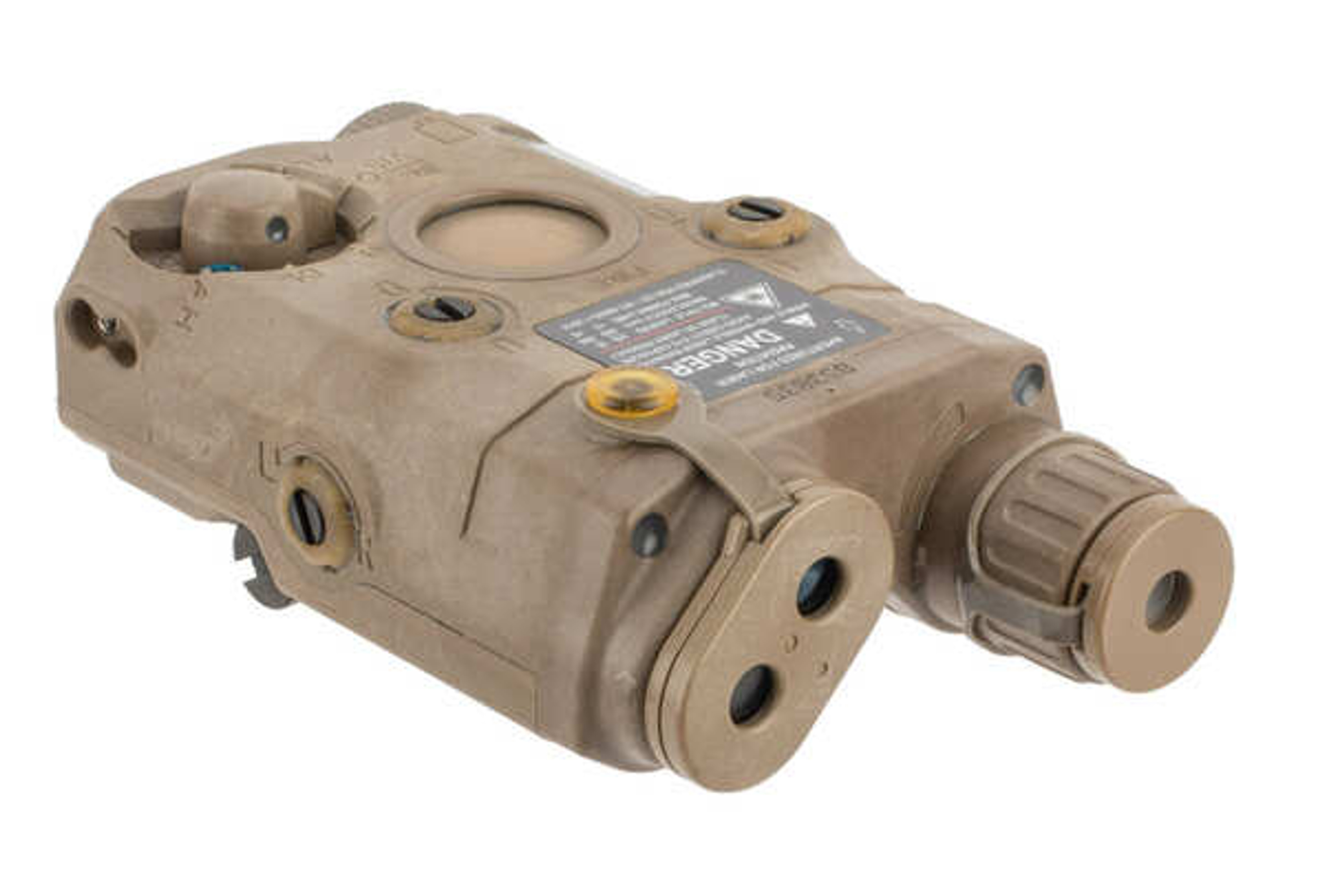

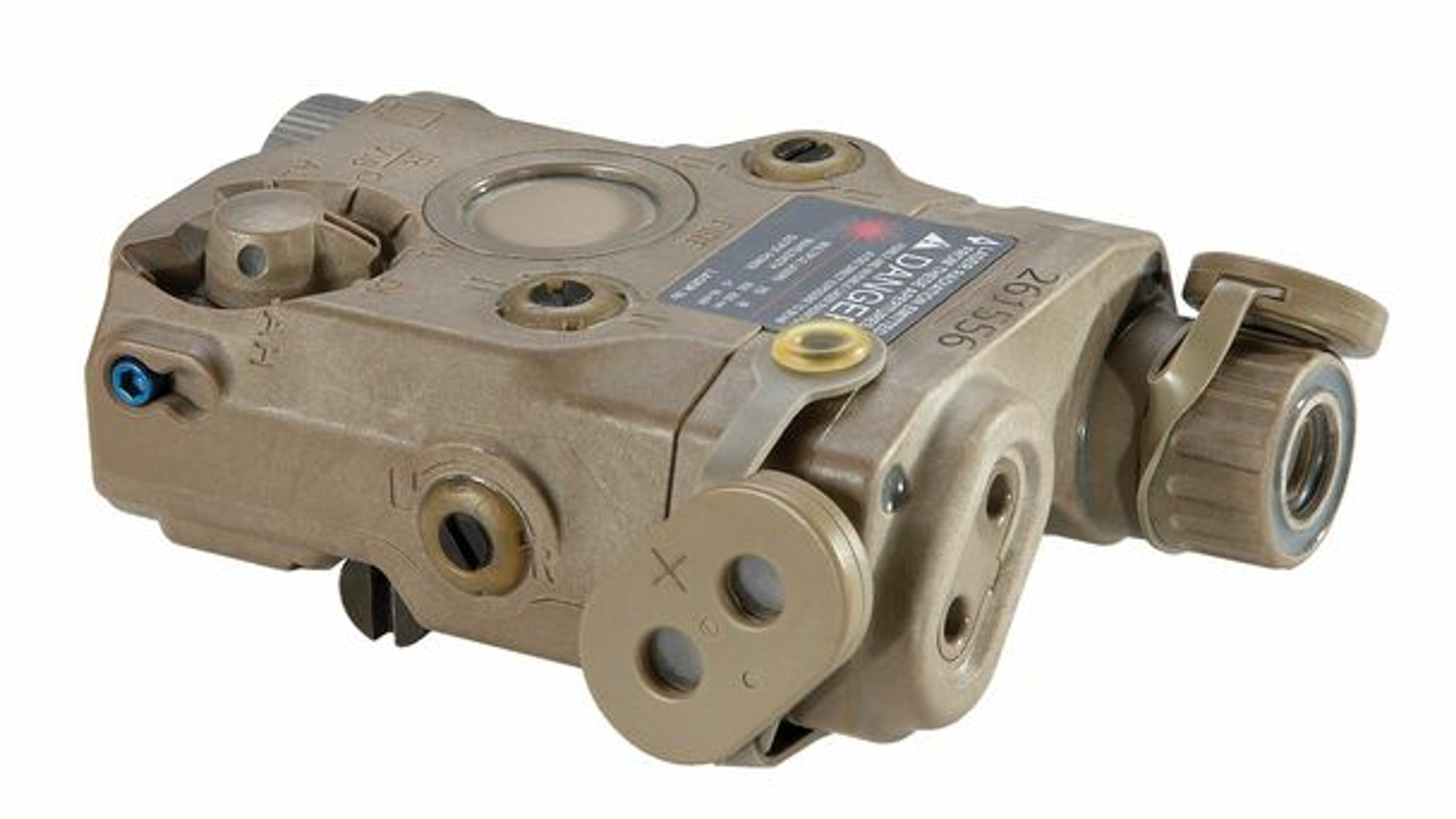

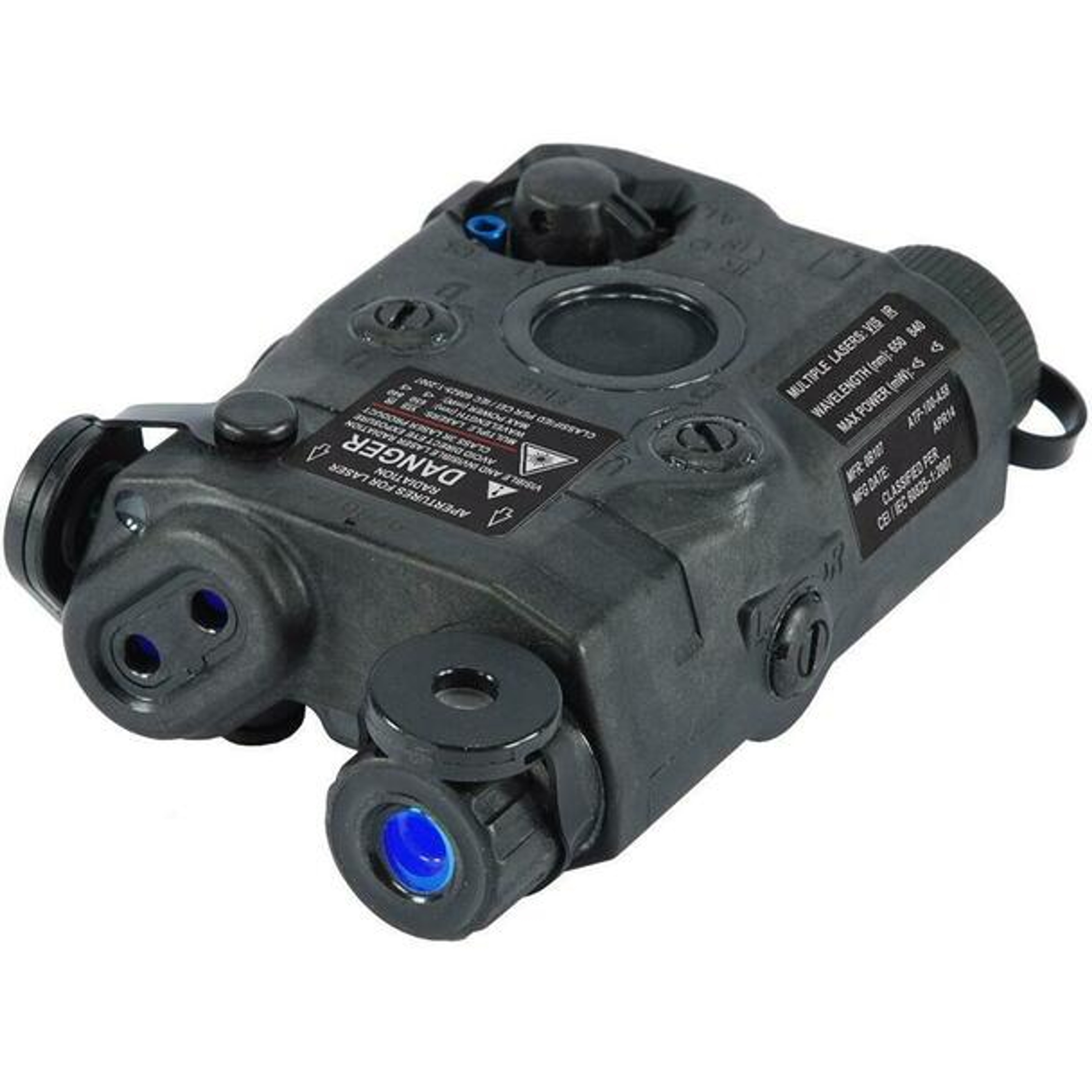

The L3Harris ATPIAL-C Advanced Target Pointer Illuminator is a cutting-edge aiming system designed for rugged environments. This battle-tested device integrates both infrared and visible lasers, along with an infrared illuminator, ensuring unparalleled performance in low-light conditions. Weighing just 7.5 oz and measuring 4.6” x 2” x 1.6”, it provides easy handling and robust functionality for tactical training in law enforcement and military applications. The commercial-class laser empowers users with precise aiming capabilities, boasting impressive ranges and power settings. Please note that export is restricted without proper licensing per U.S. regulations.
