The Maxa Beam Starter Kit is an entry-level system featuring a 12,000,000 CandlePower Maxa Beam Searchlight with visible and infrared capability. The Starter Kit also includes one LiFePO4 battery, AC charger, and 850nm infrared filter in a storage case with room for accessories.

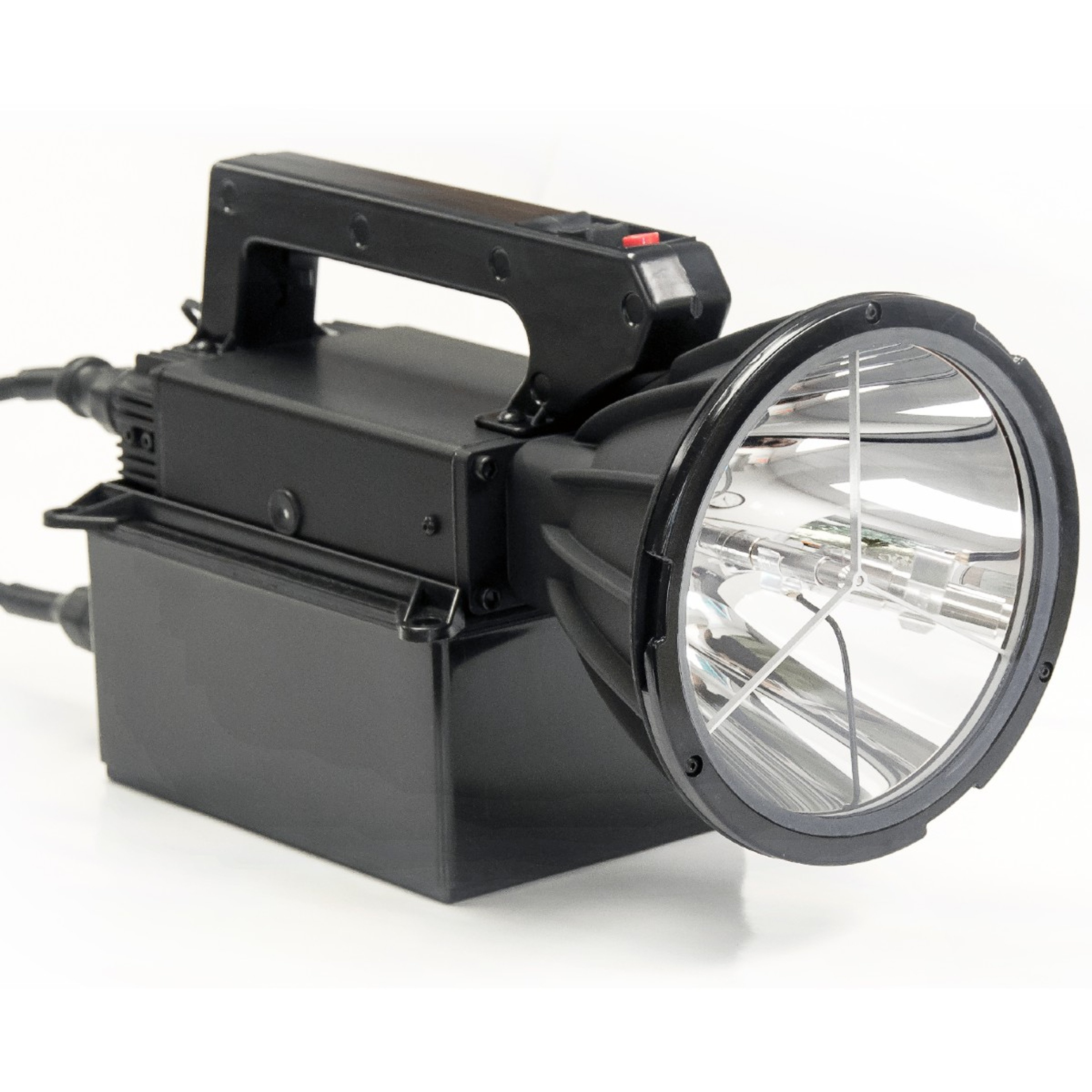

The Maxa Beam Searchlight features three beam intensity levels and a motorized beam width adjustment that allows the user to vary the beam from a 1° spot to a 40° flood with the press of a button. The system’s LiFePO4 battery powers the light for 115 minutes on regular beam level and recharges in just 110 minutes.
Kit Contents
- (1) MBS-410 Searchlight
- (1) MBP-1308 Lithium Iron Phosphate (LiFePO4) Battery
- (1) MBP-3205 100-240VAC LiFePO4 Charger

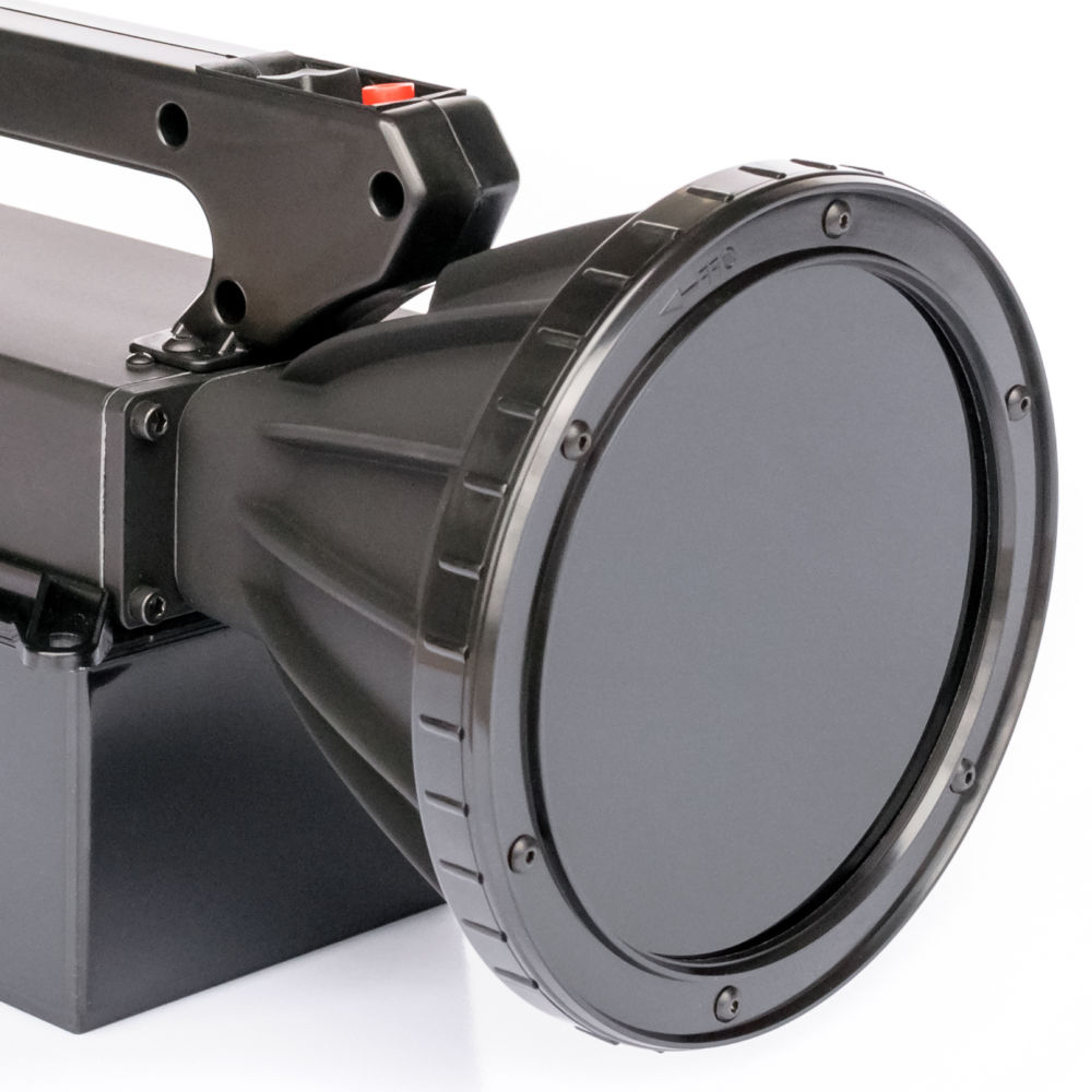

- (1) MBA-1850 850nm Infrared Filter
- (1) MBA-8208-L 8 In. Straight Power Cord
- (1) MBA-6005 Battery Shoulder Strap
- (1) MBA-6100 Padded Filter Pouch
- (1) MBA-6250 Medium Storage Case
Specifications
- Data Sheet
- Output: 12,000,000 Peak Beam CandlePower (no maximum threshold; -10% minimum threshold)
- Range: 3,500 meters (1 lux on target)
- Lamp: 85 Watt Xenon Short Arc Lamp (field replaceable); instant hot/cold start and restrike
- Infrared Illumination Capability with included 850nm IR Filter
- Beam Width: 1° Spot to 40° Flood, Motorized
- Beam Intensity: 3 levels
- Strobe: User-adjustable frequency (1-31Hz) and duty cycle (3-63%)
- Battery
- Type: 7.5Ah Lithium Iron Phosphate (LiFePO4) Battery
- Life Cycles: 2,500
- Run Time: 115 minutes (regular/default beam); 75 minutes (high beam)
- Charging: 110 minutes with included 110-240VAC Charger
- Operating Temperature: -15°C to +60°C; reduced battery run time below 0°C
- Searchlight Body: Constructed of corrosion-resistant alodined and powder-coated Aluminum and impact-resistant PC/ABS
- Size and Weight
- Searchlight: 11.2 in. long x 5.74 in. diameter; 3.2 lbs.
- Battery: 5.09 in. wide x 7.27 in. long x 3.41 in. tall; 3.0 lbs.
- Searchlight, Battery and 8″ Power Cord: 6.5 lbs.
