Steiner optimized the 1-4x24 P4Xi Riflescope for patrol rifles and AR platforms and designed the optical system with true 1x imaging (for aiming with both eyes open), high-contrast optics, and an illuminated P3TR reticle, each of which will add the needed stealth and precision to your CQC operations. While the high-contrast optics will provide you with vivid images during the day, at night they are designed to improve target recognition and visibility. To help you with making that laser-sharp shot, in the second plane lies the P3TR illuminated reticle. The reticle has sublime fine features with its four needle-shaped posts converging on an ultra-fine brilliant, red-illuminated target dot. The dot is surrounded by target brackets on the top and the sides and cascading ballistic compensation markings on the bottom. Its 11-level brightness control offers optimized settings for almost any situation: 5 for daylight, 4 for low light, and 2 for use with night vision devices. It is also parallax-free at 100 yards. To assist you in compensating for wind and ballistics, the scope has a 100 MOA windage and elevation adjustment ranges with 1/2 MOA intervals.
The housing is nitrogen-filled, waterproof and submersible, fog proof, and shock-resistant. It is crafted from a single piece of aluminum and features a 30mm maintube. In addition, the riflescope offers an eyepiece with printed numeric zoom factors. For fast and sure zoom adjustments, this scope also includes a throw lever that attaches directly to the eyepiece.
Optical Performance
- True 1x imaging for aiming with both eyes open
- High-contrast optics deliver vivid and bright images even in low light
- 1-4x zoom magnification
- 24mm objective diameter
- 110-27' at 100 yd linear field of view range

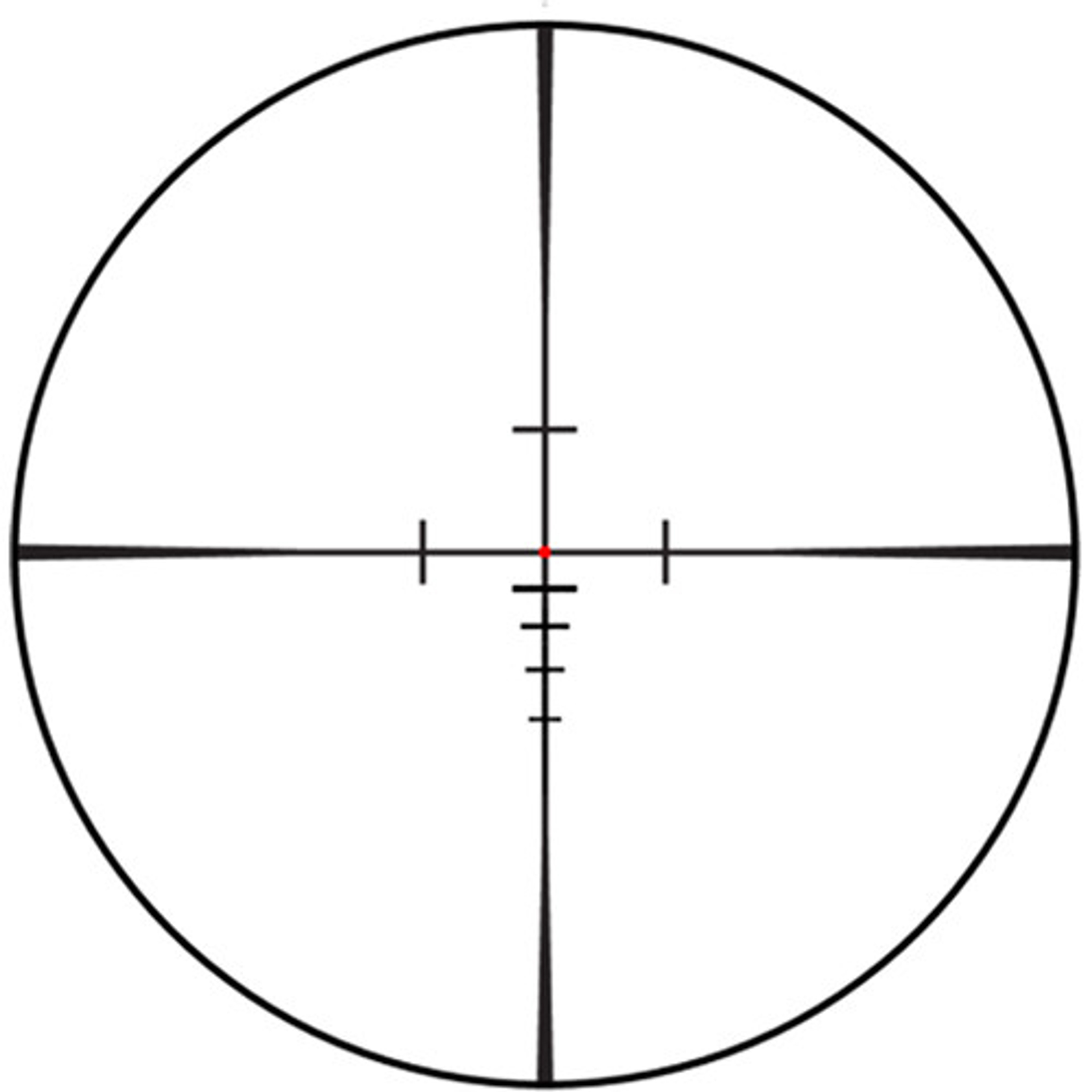

P3TR Illuminated Reticle
- 2nd focal plane
- Four needle-shaped posts
- Ultra-fine illuminated brilliant red target dot
- 5 illumination settings for daylight operation
- 4 illumination settings for low-light operation
- 2 illuminations settings for night vision devices
- An off position between the settings
Use and Handling
- 1/2 MOA per click impact point correction
- 100 MOA windage and elevation adjustment
- Eye relief: 88.9 - 101.6mm
